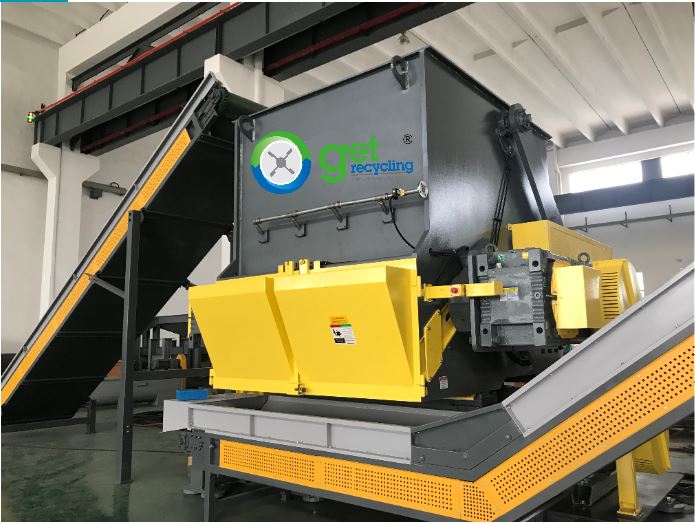

ERX Series-Heavy Duty Single Shaft Shredder For Plastic Raw Materials

The ERX Series-Heavy Duty Single Shaft Shredder has a 750mm diameter profiled rotor made of solid steel, operating at a speed of 52rpm. The concave ground, aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which guarantees a high flow rate, low power consumption and maximum output of shredder material.

The hydraulically operated ram feeds the material automatically in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.

Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance. Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.

A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.

  Key features:                                     options:

  Large diameter flat rotor                 Hydraulic screen cradle

  Machined pocket knife holders      Gearbox with shrink disc

  Optional hard facing                         Rotor cooling

  Concave ground square knives       Pipe spacer

  Robust ram construction                 Touch screen PLC

  Heavy duty guide bearings              Increased motor drive

  Universal couplings                           Bespoke colour scheme

  Bolts in drive shafts                           Hydraulic drive

                                                                                                Multiple rotor designs                      Turbo hydraulics

Technical Data
