Industrial Double Shaft Scrap Metal Shredder for Recycling Waste Car/Metal Drum

We embrace cutting-edge technology, based on quality, professional technology to provide customers with better dedusting system, , zig zag separator machine. We believe that our growth base on customer's achievements, credit history is our lifetime. We believe in the core values of 'integrity, innovation, and responsibility'. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

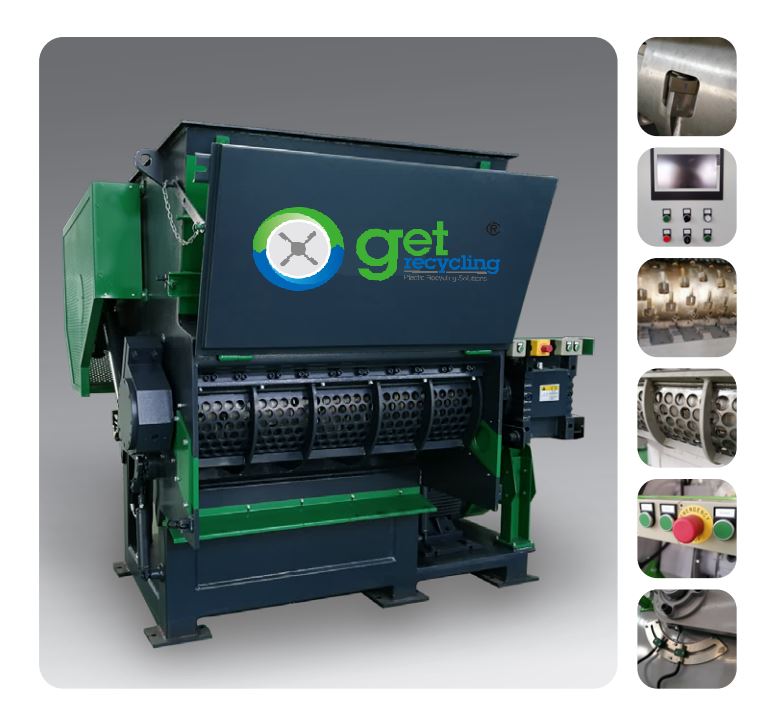

ERS Series-General Purpose Single Shaft Shredder For Plastic Raw Materials

The DGS Heavy General Single Shaft Shredder has a 457mm diameter profiled rotor made of solid steel, operating at  a speed of 74rpm. The concave ground, aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. This enables a reduction of the cutting gap between the counter knives and the rotor which gurarntees a high flow rate, low power consumption and maximum output of shredder material.

The hydraulically operated ram feeds the material automatically in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.

Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance. Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.

A safety switch prevents machine startup when the front panel is open and the machine features emergence stop buttons on the machine body and control panel.

  Key features:                                     options:

  Large diameter flat rotor                 Hydraulic screen cradle

  Machined pocket knife holders      Gearbox with shrink disc

  Optional hard facing                         Rotor cooling

  Concave ground square knives       Pipe spacer

  Robust ram construction                 Touch screen PLC

  Heavy duty guide bearings              Increased motor drive

  Universal couplings                           Bespoke colour scheme

  Bolts in drive shafts                           Hydraulic drive

  Multiple rotor designs                      Turbo hydraulics

Technical Data

Relying on our own technical advantages and management advantages, we strive to create Industrial Double Shaft Scrap Metal Shredder for Recycling Waste Car/Metal Drum that is superior to the current level in the market in terms of product performance and quality. Whether we can cultivate our own brand and build it into a strong brand has become an important indicator of whether we have a core competitive advantage in the market. We warmly welcome friends from all walks of life to visit and give guidance, work together and create a brilliant future!
