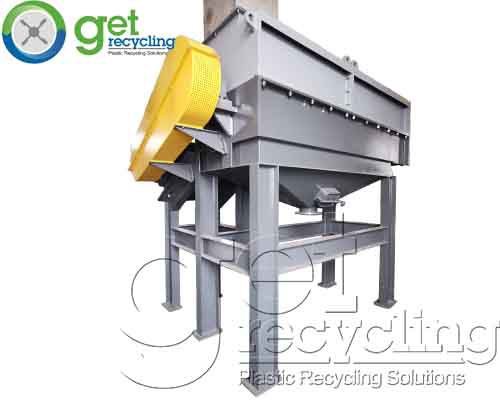

GET High Speed Waste Plastic Film Friction Washer
Welcome to our high-speed waste plastic film friction washer! We are proud to offer you a top-of-the-line product designed to give you the very best results in recycling plastic waste. Through years of research and development, we have created a product that is not only durable and reliable but is also incredibly efficient and effective at cleaning and preparing waste plastic film for reuse.
Our high-speed waste plastic film friction washer is a vital piece of equipment that can help you streamline your recycling operation, cut down on waste, and ultimately drive profits by keeping costs low. It is perfect for a range of industries, including recycling centers, plastic processing companies, and manufacturers who need to clean and recycle large amounts of plastic waste.
The GET High Speed Waste Plastic Film Friction Washer is a fully automated machine that is designed to clean and wash plastic film products such as bags, packaging, and industrial films. The machine is capable of washing up to 3000 kg per hour of plastic materials, effectively removing dirt, debris, and other contaminants from the surface of the plastic. Our friction washer uses a combination of high-speed friction and water flushing to thoroughly clean the plastic film, making it ready for downstream processing and reuse.
One of the key benefits of our friction washer is its high-speed capabilities. The machine operates at a high speed, which means that it can quickly process large quantities of plastic waste, helping you to save time and improve your overall efficiency. The machine is also designed with energy efficiency in mind, ensuring that your operating costs are kept low.
Additionally, our friction washer is incredibly user-friendly and requires very little maintenance. It has a simple operating system and minimal moving parts, ensuring that it can be operated by anyone with minimal training. This makes it a perfect option for small and medium-sized businesses that are looking to enhance their recycling capabilities.
The GET High Speed Waste Plastic Film Friction Washer is built using the highest quality materials, ensuring that it is durable and long-lasting. We understand that your business relies on the efficient operation of your equipment, and we are committed to providing you with a reliable and consistent product. The machine comes with a 12-month warranty and access to our knowledgeable customer support team, ensuring that any issues can be quickly addressed.
In conclusion, our high-speed waste plastic film friction washer is a must-have for anyone looking to increase the efficiency and profitability of their plastic recycling operation. Its high-speed capabilities, low cost of operation, and user-friendly design are just a few of the reasons why it is an investment that cannot be overlooked. We invite you to contact us to learn more about our machine and to discover how it can benefit your business today!
Film friction washer is used to wash highly contaminated film flakes. They are used for discharging treated material mixed with water from a wet grinder. This also can be used in special cases where the friction washer can be installed in front of or after washing tank.
The friction washer consists of a double-walled trough with a fast running paddle rotor to dewater and clean plastic materials (film flakes, granules and similar materials).
The plastic materials with water are fed at the inlet of the trough. The material is washed while being transported to the outlet of the trough. Fines and water are thrown through the screen to the outside while the friction of the paddle rotor cleans the materials.
The centrifuged drain is discharged at the bottom of the trough. The trough is equipped with a removable screen with a stainless screen. A rinsing device ensures the automatic cleaning of the screen and of the inner housing.
Features:
1. Reinforced and interchangeable rotor in order to guarantee a higher machine quality
2. Anti-wear steel for blades of rotor
3. Flexibility of the rotor shaft and screen to process the rotor confituration can be changed from washing centrifuge to prewashing centrifuge.
4. Delicated geometry rotor makes it possible to avoid blockings with medium size pieces.
5. Self-cleaning system for the screen.
6. The diameter of the screen holes changes according to the type and degree of the contaminants.
Technical Data
| Model | FW6055 | FW8075 | FW8090 |
| Standard capacity | 700kg/hr | 1400kg/hr | 2100kg/hr |
| Standard motor power | 55kw | 75kw | 90kw |
| Applicable capacity | 500-900kg/hr | 1000-2000kg/hr | 2000kg-3000kg/hr |
Notice: Capacity of film friction washer is related to film thickness
| Model | FW6055 | FW8075 | FW8090 |
| L*W*H | 3600*1800*2370 | 3752*2306*2730 | 3752*2306*2730 |
| Inlet height(mm) | 2015 | 2700 | 2700 |
| Outlet height(mm) | 1100 | 1287 | 1287 |
| Discharge flange connection | 8inch | 8inch | 8inch |
| Inlet flange connection | 1.5inch | 1.5inch | 1.5inch |
| Rotating speed(rpm) | 1000 | 1000 | 1000 |
| Blades thickness | 10 | 10 | 10 |
| Dia.of screen holes(mm) | 3-10 | 3-10 | 3-10 |
| Blades material | Anti-wear material | Anti-wear material | Anti-wear material |
| Screen material | Stainless steel(304) | Stainless steel(304) | Stainless steel(304) |
