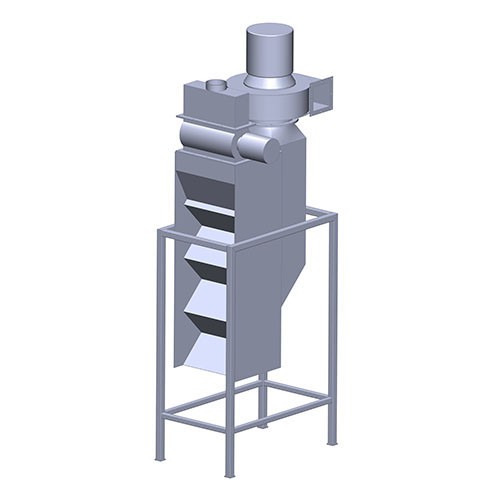

Zig-zag air separator included in the plastic recycling machine

图片8.jpgIntroduction of Zigzag

The Zig Zag also known as an Air Classifier, is designed to remove light contamination; such as paper,label  and dust from plastic flake or other granular material. Single or multiple tower systems are available dependent on the throughput required. Typically positioned in a recycling line after granulation or dry cleaning operations. an aspirator is used to remove the lighter particles from the main material flow.


  The Air Classifier Separator  works on the principle of upward vacuum extraction of light contaminating materials by a channel, into which the mixed material falls. Material enters the Air Classifier Separator via a rotary valve and is distributed evenly between the towers before tumbling down each zig zag chamber. The heavy fraction is removed from a central collection hopper and the light fraction is lifted from the cascading material stream by a counter air flow and transferred to a separating cyclone.



Technical Data

Model

ZZ60

Capacity(for PET/HDPE)

1500-2000kg/h

Outline Dimension(L*W*H)

 1450mm*736mm*4970mm

Motor power of rotating valve

1.5kw

Motor power of aspirator

7.5kw

Width of zig-zag

600mm

Dia. of pipe

159mm

Material

--inlet cyclone: stainless steel 304

--Zig-zag body: stainless steel 304

--Frame: carbon steel

Label collector

collecting the light fraction such as label and paper.

Dia: 1000mm

Material: carbon steel

Pipes for zig-zag  and label collector

included

*Please contact us for more models information



 More details please contact G.E.T without hesitate!
